FTC TREE Micro-Cylindre 2.1

Technical Notice (PDF)

Made entirely of aluminium, it won’t heat up and won’t burn your ropes. It’s a clever addition to the friction devices already found in the FTC range. The upper ring enables reeving.

Two fairleads at the end of the cylinder prevent losing wraps and overlapping of the rope. A third fairlead under the cylinder enable a finer, more precise rigging. The symmetry of the device allows left or right location of the ground crew.

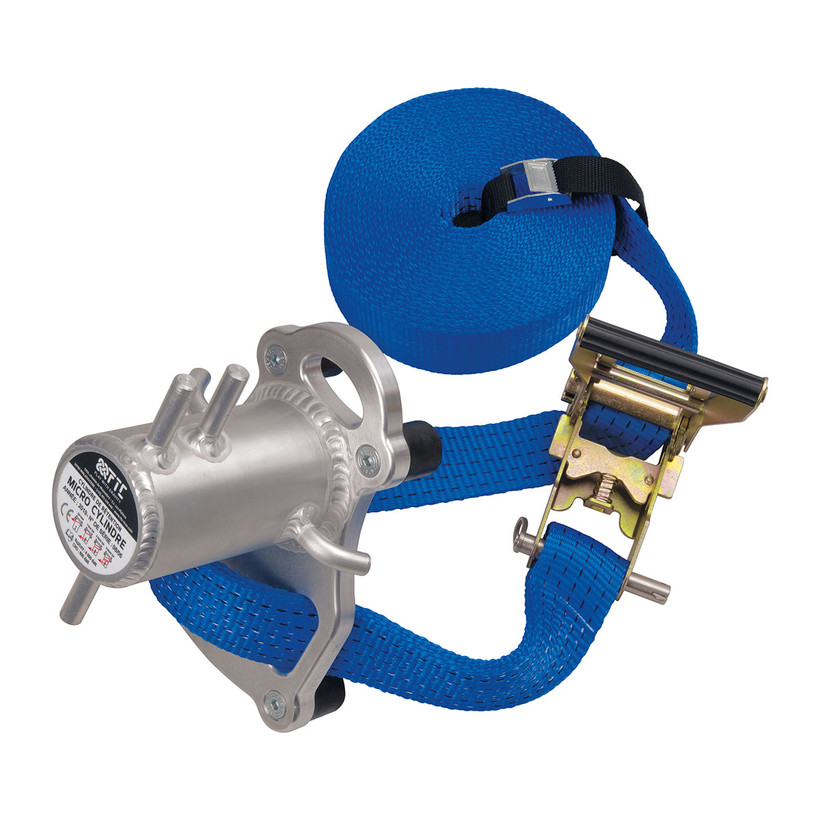

*The MICRO-CYLINDRE 2.0 is delivered with a strap and in its own box for easy transport and storage.*

Technical characteristics:

• Machinery Directive 2006/42/CE
• Plate: 224 mm high, 163 mm wide
• Cylinder Ø: 75 mm
• Strap: 9 m (29.5 ft) (for trees up to 2 m (6.6 ft) in diameter), MBS 7,500 daN
• Ratchet tensioner: MBS 6,000 daN
• Box: 30 cm x 40 cm - 19.5 cm high (11.8 in x 15.7 in - 7.7 in high)
• Maximum Ø of rope allowed: 14 mm (0.55 in)
• MBS: 4,000 daN - WLL: 800 daN
• Weight: 3.8 kg without the box (5.1 kg with) (8.4 lb without the box, 11.2 with)
