Description
A simple and clean solution for building highlines that limits the number of connectors in the system.
Details

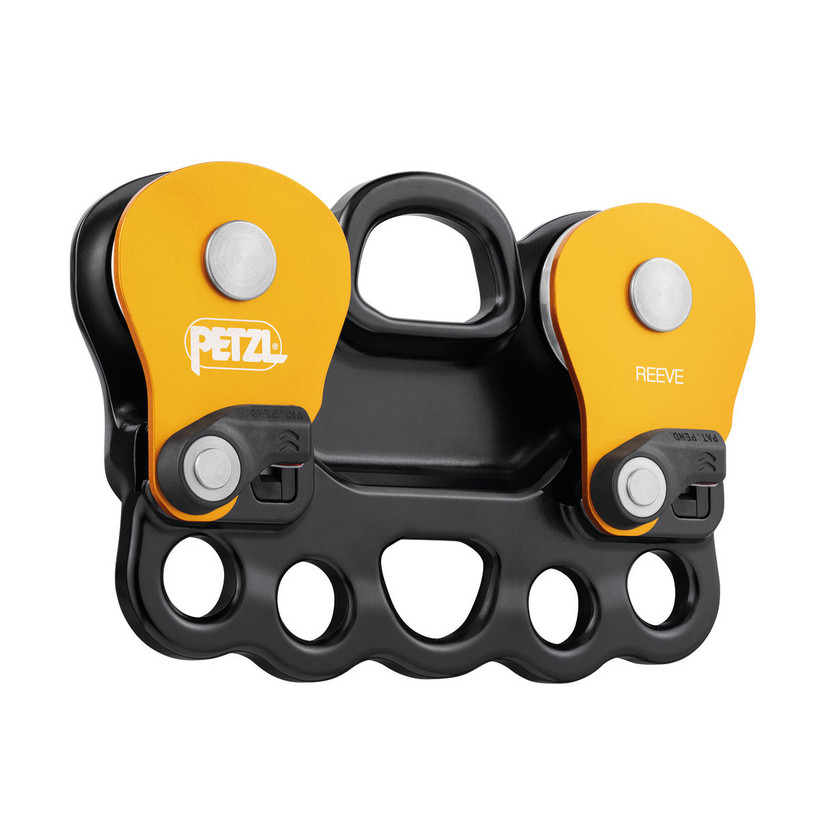

An integrated solution designed to simplify setting up rescue systems on tensioned highlines: the REEVE pulley limits the number of connectors and the height of the system, thanks to its compact design.
Operations and efficiency are optimized:
- Triple-action opening of moving side plates, possible even with gloves
- Red indicators provide a visual warning when the side plates are not correctly locked
- Two large-diameter sheaves mounted on sealed ball bearings for excellent efficiency
- Possible to rig the system before installing it on the main line
- Multiple configurations and connections are possible:
- System can be made redundant by placing two REEVE pulleys side by side (if distance between ropes permits), or by connecting a pulley to the upper connection hole for ropes at a further distance
- Pulley can be used in a haul system
- Hole design allows ropes or slings to be threaded for direct connection
- 19 mm holes allow locking sleeves of most carabiners to pass through
- The odd number of attachment holes enables the system to be centered and balanced
- Up to three people can be connected at the same time
Specifications:
- Weight: 650 g
- Certification(s): CE EN 12278, NFPA 1983 General Use
- Material(s): Aluminum, stainless steel, nylon
- Min. rope diameter: 7 mm
- Max. rope diameter: 13 mm
- Sheave type: Sealed Ball Bearings
- Sheave diameter: 38 mm
- Working Load Limit: 4 x 2 kN = 8 kN
- Breaking strength: 36 kN
- Efficiency: 95 % that limits the number of connectors in the system.
- Manufacturer Part Number:
- P005AA00
- Country of Manufacture:
- FR
