Description

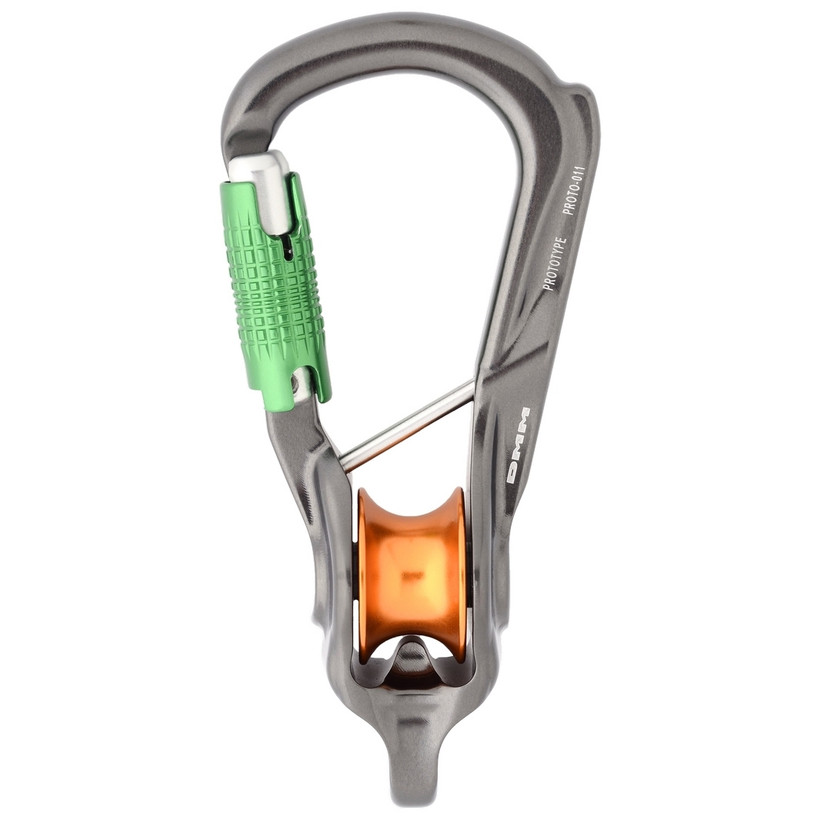

A connector with an integrated pulley sheave. It features a high efficiency roller bearing sheave(s), threaded removable captive bar and a full strength textile friendly becket.
Details
The uniquely profiled spine and captive bar aid in maintaining correct orientation.
The design of the Revolver Rig is such that when using a connector attached to the becket any friction between the connector and rope is minimised.
Features:
• Large sheave tread diameter for large bend radius
• High efficiency roller bearings Full strength becket accepts most connectors or direct textile connection
• Removable captive bar
• DMM iD optional
• Keylock nose for snag free operation
• Uniquely profiled spine to aid correct orientation
• Dimensions: 76 x 160mm
• Max Rope Diameter: 7-13mm
The design of the Revolver Rig is such that when using a connector attached to the becket any friction between the connector and rope is minimised.
Features:
• Large sheave tread diameter for large bend radius
• High efficiency roller bearings Full strength becket accepts most connectors or direct textile connection
• Removable captive bar
• DMM iD optional
• Keylock nose for snag free operation
• Uniquely profiled spine to aid correct orientation
• Dimensions: 76 x 160mm
• Max Rope Diameter: 7-13mm
- nfpa-certified:
- No
- Color:
- Gray
- Item Status:
- Active
- Certifications:
- EN12278:2007, EN362:2004
- Manufacturer Part Number:
- A5871CB
- Country of Manufacture:
- GB
- Material:
- Aluminum
- Tensile Strength:
- 5,620 lbs (25kN)
- WLL:
- 1124lbs (5kN)
- Product Type:
- Auto Locking
