Description

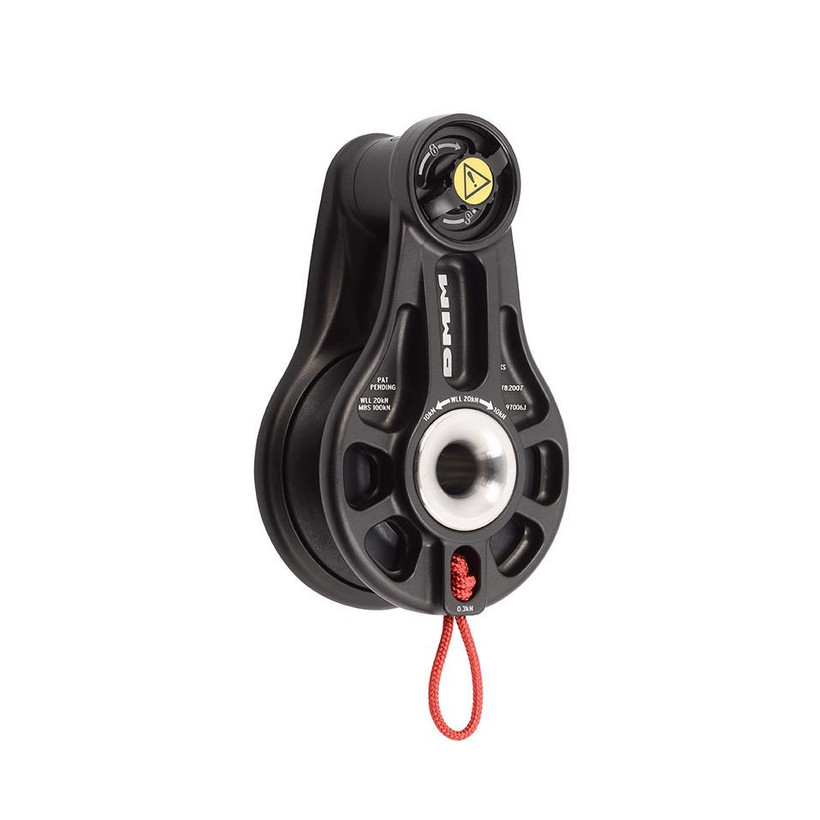

This is a block with a difference. (Matte Grey) Designed to combine lightweight and compact with high performance, the Impact Block XS will become your best friend for redirect rigging, winching and snatching stem wood.
Details
DMM Impact Black User Guide (PDF)
This is a block with a difference. Designed to combine lightweight and compact with high performance, the Impact Block XS will become your best friend for redirect rigging, winching and snatching stem wood.
Weight: 708g (1.56lbs)
MBS: 100kN
WLL: 20kN)
Maximum Rope Diameter: 16mm
Maximum Sling Diameter: 20mm
- Lightweight hot-forged aluminum sideplates
- Unique interlocking anchor bollard for increased security
- Very high efficiency
- Hollow axle design facilitates complex rigging configurations
- Robust, but lightweight
Maximum width of textile anchor slings on the anchor thimble:
X-Small Impact Block Ø20mm
Small Impact Block Ø22mm
Large Impact Block Ø27mm
- Color:
- Green
- Item Status:
- Active
- Certifications:
- EN12278:2007
- Manufacturer Part Number:
- IMB-XSMG
- Country of Manufacture:
- GB
- Material:
- Aluminum
- Rope Capacity:
- 5/8 in (16mm)
- WLL:
- 4496 lbs (20 kN)
- Product Type:
- Specialty Pulleys
