SMC

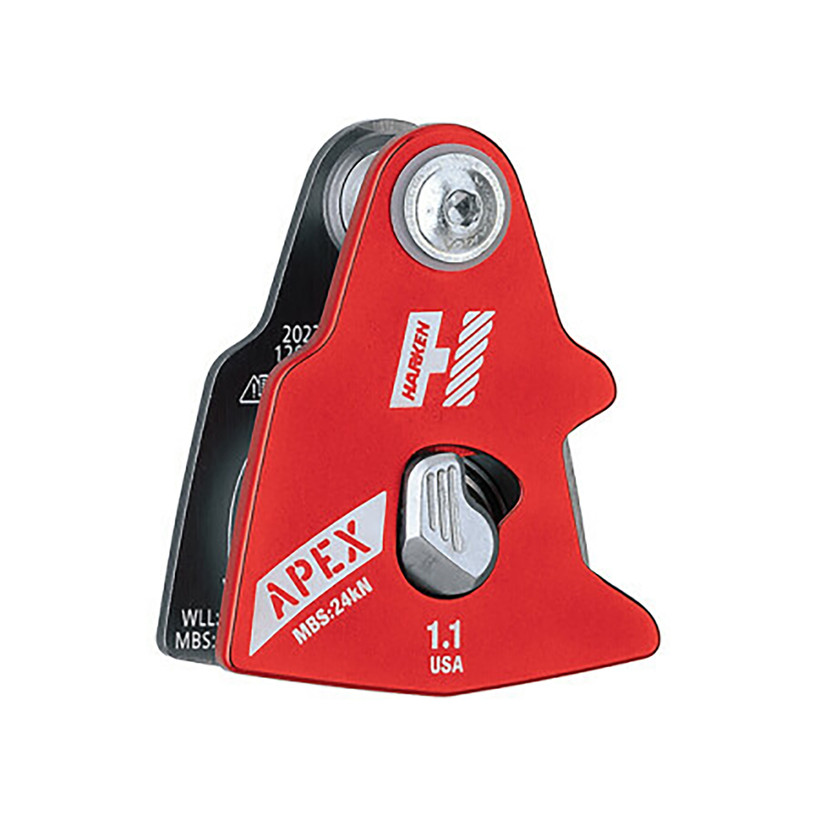

SMC Apex Direct 1.1 Swivel Pulley

$84.99

Sherrilltree Pro Rewards

SKU:
UPC:
870449001094

The Apex Direct is SMC’s fresh approach to the conventional pulley. It’s specifically designed to be used with soft attachment slings, which naturally aligns the rope with the direction of the pull just like a swivel pulley does. It’s compact and over 50% lighter than a comparable swivel pulley/locking carabiner combination. The Apex Direct is mid-line attachable and features one handed operation that utilizes a low-profile, patented, triple-action lock mechanism. This lock is operated by three distinct actions: pivot the lock button, depress it, then swing open the side plate. Simply closing the side plate re-engages the lock mechanism and solidly secures the rope.

Active slide of SMC Apex Direct 1.1 Swivel Pulley

Description

The Apex Direct is SMC’s fresh approach to the conventional pulley. It’s specifically designed to be used with soft attachment slings, which naturally aligns the rope with the direction of the pull just like a swivel pulley does. It’s compact and over 50% lighter than a comparable swivel pulley/locking carabiner combination. The Apex Direct is mid-line attachable and features one handed operation that utilizes a low-profile, patented, triple-action lock mechanism. This lock is operated by three distinct actions: pivot the lock button, depress it, then swing open the side plate. Simply closing the side plate re-engages the lock mechanism and solidly secures the rope.

Details

Weight: 4.3 oz. (122 g)
MBS: 24 kN
WLL: 6 kN
Rope Size: up to 13 mm
Sheave Major Diameter: 1.5”
Sheave Tread Diameter: 1.1”
Dimensions: 2.8” x 2.34” (72.12 mm x 59.44 x 28.2 mm)
Sheave Material: Aluminum

  • Efficient sealed bearings
  • PMP side plates - designed to be prusik minding
  • CE/UKCA
  • MADE IN USA
nfpa-certified:
No
Item Status:
Active
Manufacturer Part Number:
165010
Country of Manufacture:
US
