Description

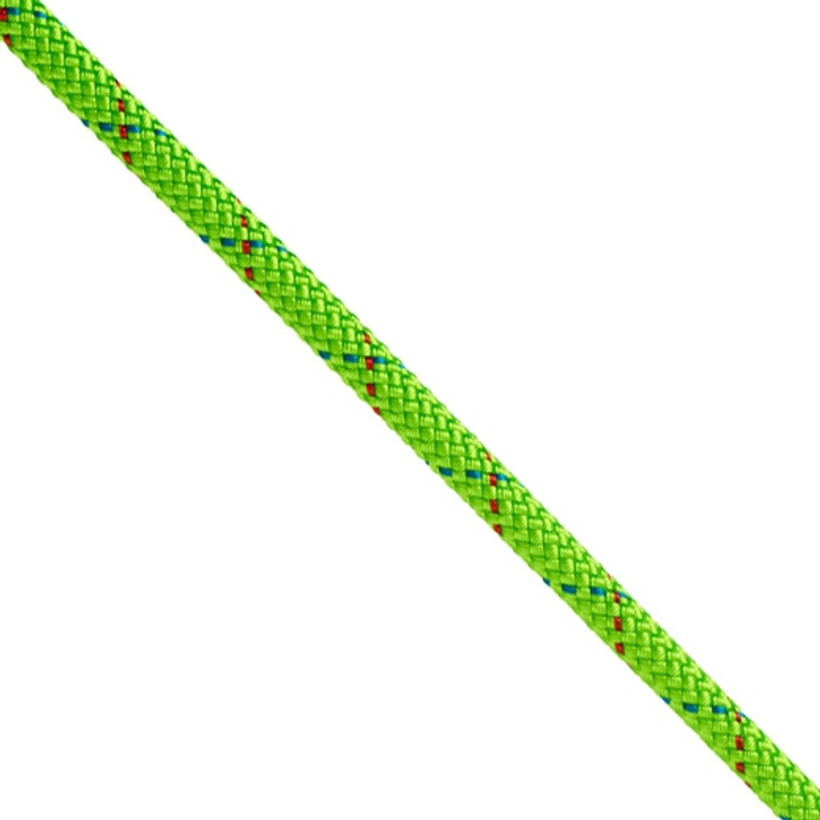

This 1/2" (13mm) Atlas double braid rigging line is the workhorse of the Sterling arbor rigging lines. Sterling redesigned this double-braid construction with a polyester sheath and nylon core construction that provides a huge increase in overall strength, while lowering the static elongation. The Atlas resists picking and protects the nylon core without sacrificing handling du to a tightly woven polyester sheath. The Atlas double braid rigging line works great with a capstan winch, port a wrap, or rigging blocks.
Details
Specifications:
Elongation: Elongation at 10% MBS: 4.1% Elongation at 300lbs: 0.9%
Diameter: 13mm (1/2")
Length: 150 ft 200 ft 600 ft
Material: Nylon/Polyester
Strand Count: 32 Strand
Tensile Strength: 10,800 lbs (48 kN)
Average Breaking Strength: 11,500lbs
Weight: 7.9lbs
Sheath Percentage: 49%
Sterling Atlas 1/2in Rigging Line Features:
• Nylon core/polyester cover construction
• Unmatched strength-to-weight ratio
• Over 32% stronger than the previous Atlas design rigging rope
• Sturdy double-braid construction
Added eyes by Rope Logic include Scannable compatibility for track and trace capability.
- Item Status:
- Active
- Elongation:
- Elongation at 10% MBS: 4.1%
- Manufacturer Part Number:
- AT130190046
- Country of Manufacture:
- US
- Diameter:
- 13mm (1/2")
- Length:
- 150 ft
- Material:
- Nylon/Polyester
- Strand Count:
- 32 Strand
- Tensile Strength:
- 10,800 lbs (48 kN)
