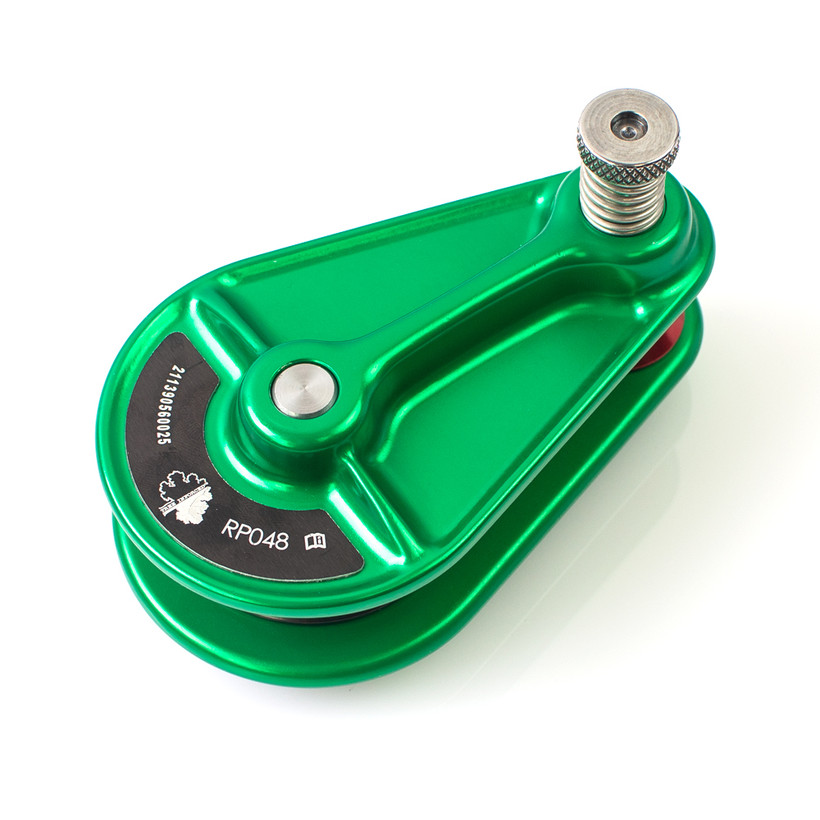

ISC Compact Rigging Pulley. Works with up to 13mm Rope

$169.99
SKU:
36219
UPC:
5060508261353

At approximately half the size of the standard small rigging pulley and weighing in at only 490g (1lb), the new compact rigging pulley offers a highly impressive strength to weight ratio, with an 85kN (19000lbs) MBS and WLL of 17kN (3800lbs).

$169.99
Adding to cart... category.add_cart_announcement

Description

At approximately half the size of the standard small rigging pulley and weighing in at only 490g (1lb), the new compact rigging pulley offers a highly impressive strength to weight ratio, with an 85kN (19000lbs) MBS and WLL of 17kN (3800lbs).

Details

At approximately half the size of the standard small rigging pulley and weighing in at only 490g (1lb), the new compact rigging pulley offers a highly impressive strength to weight ratio, with an 85kN (19000lbs) MBS and 10:1 WLL of 8.5kN (1,900lbs). The Pulley plates are made from hot forged Aluminium and it is this manufacturing process which allows such a compact pulley to boast such great strength and dynamic load bearing capacity. Lower sheave can hold up to 1/2" diameter rope. Top sheave can hold up to 5/8" diameter sling.
Color:
88
Diameter:
3805
Length:
5 in
Material:
272
Width:
3 in
WLL:
630
Country of Manufacture:
GB
Manufacturer Part Number:
RP048A1
