Description

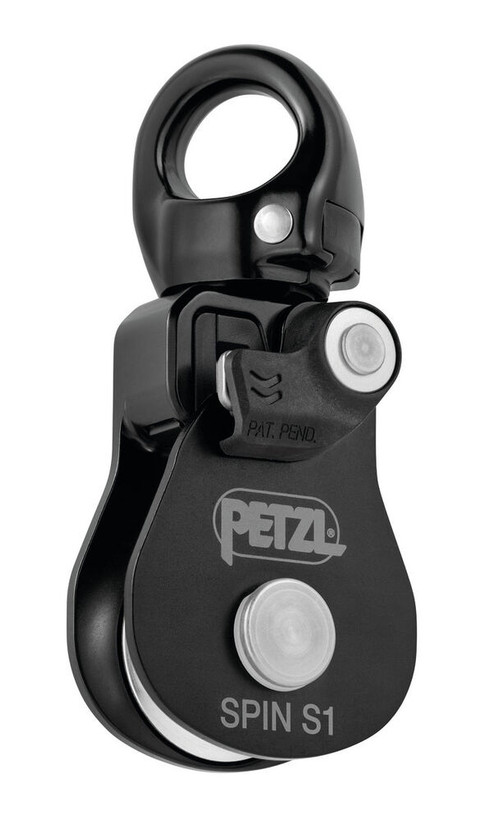

SPIN S1 Black Very high-efficiency, compact single pulley with swivel
Details
Possible to open, even when attached to the anchor, the SPIN S1 pulley is designed for maximum simplicity in setting up haul systems and tensioned highlines. Compact, reducing weight and bulk during operations. The sheave mounted on sealed ball bearings provides excellent efficiency. The swivel facilitates operations, allowing the pulley to be oriented under load and direct connection of carabiners, ropes, or slings.
Compact pulley designed for maximum simplicity in setting up haul systems and tensioned highlines during operations when weight and size are important factors:
- Triple-action opening of the moving side plate is quick and easy, even with gloves
- The rope can be installed with the device connected to the anchor
- Red indicator provides a visual warning when the moving side plate is unlocked
- Special side plate design protects the rope path
Optimal efficiency:
- Mid-size diameter sheave mounted on sealed ball bearings for great efficiency
Swivel facilitates operations:
- Allows pulley to be oriented under load
- Ropes or slings can be threaded for easier rigging
- Allows most carabiners to rotate, meeting European standards
Specifications
Weight: 145 g
Certification(s): CE EN 12278, NFPA 1983 Pulley Technical Use, UIAA
Material(s): Aluminum, stainless steel, nylon
Min. rope diameter: 7 mm
Max. rope diameter: 11 mm
Sheave type: Sealed ball bearings
Sheave diameter: 25 mm
Maximum working load: 2,5 x 2 = 5 kN
Breaking strength: 23 kN
Efficiency: 91 %
- Certifications:
- CE EN 12278, NFPA 1983 Pulley Technical Use, UIAA
- Color:
- Black
- WLL:
- 1124lbs (5kN)
- Sheave Diameter:
- 25mm
- Country of Manufacture:
- FR
- Manufacturer Part Number:
- P002AA01
- Product Type:
- Smaller Pulleys
